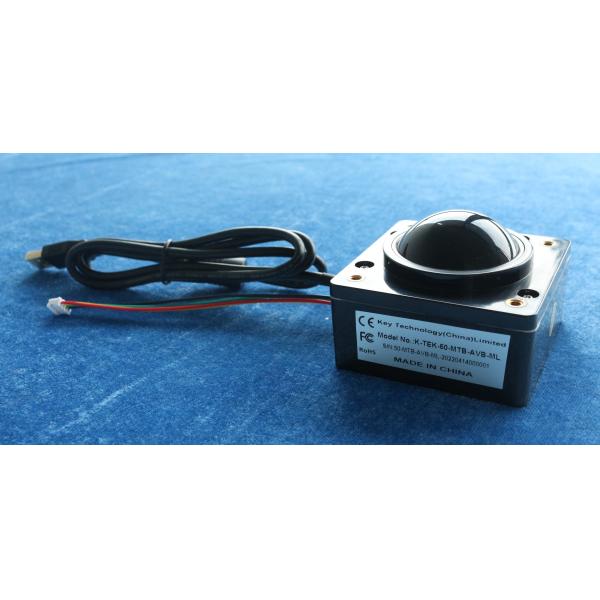

400DPI IP65 Military Trackball Module Rear Panel Mounted USB / PS2

Name: 400DPI IP65 Military Trackball Module Rear Panel Mounted USB PS2
Brand: IKB-MKB
Price: 1 USD

Wholesale 400DPI IP65 Military Trackball Module Rear Panel Mounted USB / PS2 from china suppliers

Brand Name : IKB-MKB

Model Number : K-TEK-50-MTB-AVB-ML

Certification : CE, FCC, ROHS, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : To be quoted

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Resolution : 400 DPI

Ball diameter : 50mm

Interface : USB /PS2

Protection Level : IP65

Power supply : +5V DC +/-5%

Trackball Material : black harden resin ball

Dimension : 72.6mm x 72.6mm x 34.5mm

Certificates : RoHS compliant, CE and FCC certified

Operating temperature : -40ºC~+ 60º C

MTTR : < 30min

Contact Now

DESCRIPTION:

1: 50.0mm (2.0’') vandal proof IP65 military level mechanical trackball module

2: black harden resin ball with 400DPI resolutions

3: military grade with wide temperature of -40°C to +60°C

4: anti-vibration, USB/PS2 interface available

DIMENSIONS: 72.6mm x 72.6mm x 34.5mm

TECHNICAL SPECIFICATION

ITEM		SPECIFICATION
Mechanical Data	Ball diameter	50mm/2.0’'
	Track ball lifespan	> 5 years
	Dimension	50.0 mm diameter for ball, 72.6mm x 72.6mm x 34.5mm
Interface	USB/PS2
Weight	0.209KGs
Electrical	Power supply	+5V DC +/-5%
	Protection level	IP65 (static)
	EMC Standard	EN 55032:2015, EN 55035:2017
	Power consuming	≤1.00W(dynamic)
	Power consuming	≤0.2W(static)
Environmental	Operating temperature	-40ºC~+ 60º C
	Storage temperature	-45ºC~+ 70ºC
	Operating RH	30～90%
	Atmospheric pressure	60～106Kpa.
Reliable	Certificates	RoHS compliant, CE and FCC certified
	MTBF	>20000h
	MTTR	< 30min
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android
Packing Details	Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.

400DPI IP65 Military Trackball Module Rear Panel Mounted USB / PS2

Product Tags:

400DPI Military Trackball Module

IP65 Military Trackball Module

Panel Mounted Military Trackball Module
